I like to send my newsletter whenever I have exciting news or ideas to share, so here we go again…
|
|
|
I had another crazy idea… I’ll start from the beginning.
|
|
Way back when I started setting up my shop, Jamie at Kaiser’s gifted me a plug cutter, but there was a catch: it had a dull blade. He had since switched cutter styles and it was sitting in a drawer, but it was still a fantastic gift.
|
|
I got home and thought maybe I could sharpen it with an angle grinder, just a quick pass to clean up the edges. Wrong. It cut way too fast and essentially ruined the blade. I figured it was dull anyway, so what did I have to lose? I tossed it aside and bought a replacement blade (which is why I created my plug cutter centering jig). Ever since, it’s been in the back of my mind whether I could ever restore that damaged blade.
|
|

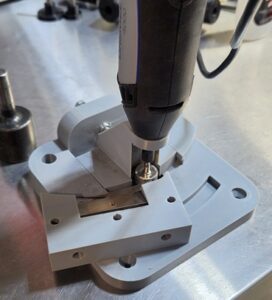

Fast forward to a few weeks ago, and I decided it was time to give it a shot. Instead of free-handing it, I set out to design a jig that holds a rotary tool (aka a Dremel) with a grinding wheel, plus a sliding platform that carries the blade so it grinds on a perfect 4.25″ radius arc. It wasn’t an easy task, but I mustered through it, and here it is…
|

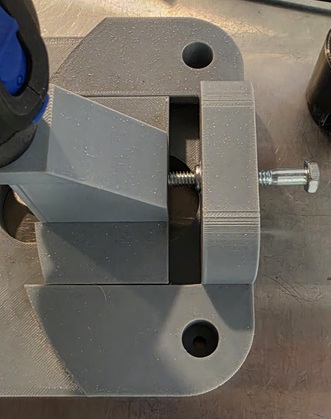

| Back screw to set grinding wheel depth. |
|
|
|

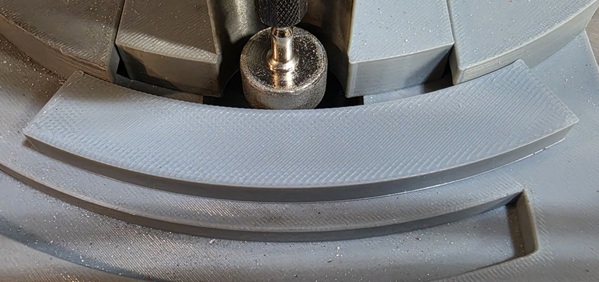

| Adjusting the grinding wheel’s position to match the contour of a bowling ball, using a simple printed template. |
|
|
|

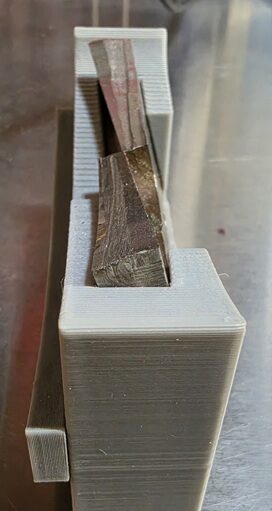

| There are two blade holders. The gray one holds the blade at 15° for the back cut. I shouldn’t normally need it, but the blade had enough damage that I wanted to reface the back cut. |
|
|
|

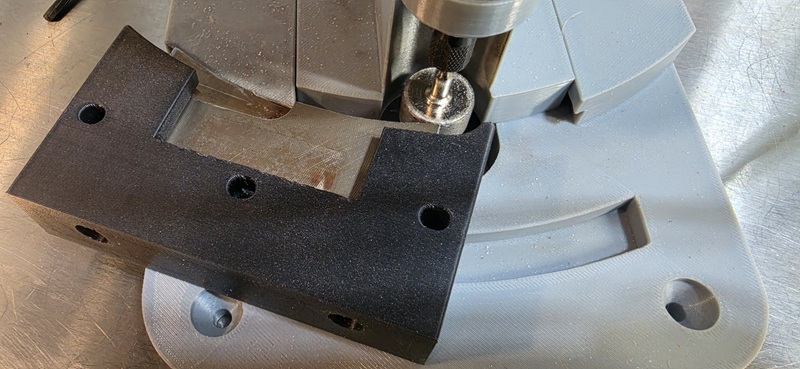

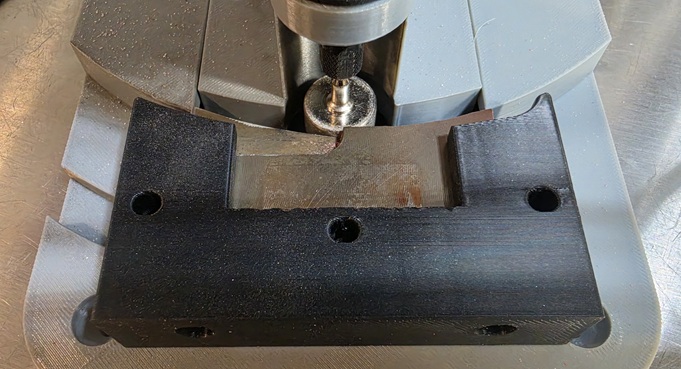

| The black holder holds the blade at 0° for the cutting face. |
|
|
|
|
| …to the edge. Flip the blade in the holder to do the other side. |
|
|
|

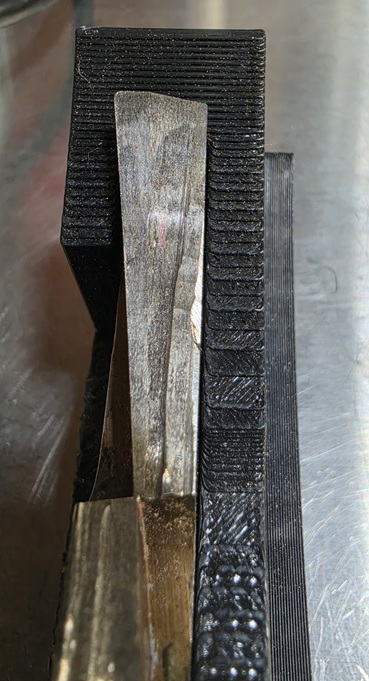

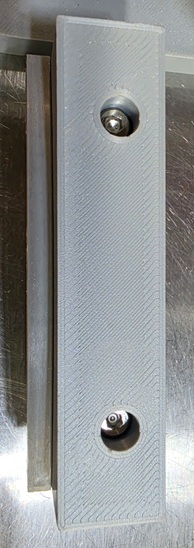

| Screws on the holder set the blade depth. |
|
|
|

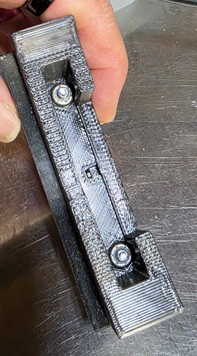

| Here’s an inside view of the depth-setting screws. |
|
|
|
|
I was skeptical it would actually work, so I was pleasantly surprised when I cut my first plug with the restored blade. It isn’t perfect yet and I’ll keep working on it, but it’s gone from slated for the trash can to a renewed blade.
|
|
I don’t plan on selling the jig, but once I get the process perfected, I’ll be hunting for used, dull blades that I can buy and sharpen. There might soon be another product in my shop: RDTL Restored Plug Cutter Blades. LOL.
|
|
|

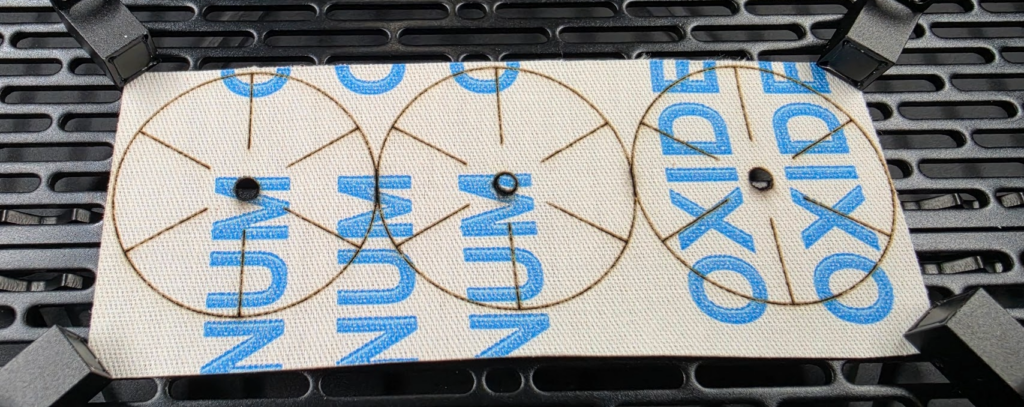

I’ve been trying to find a better way to smooth the inner bore of my RDTL printed thumb inserts. Acetone baths work, but they take a long time to do it uniformly, and hand sanding is a pain. I tried my bevel sander, which works, but the finest discs I could find stop at 240 grit, much too aggressive for ASA. When I hand sand, I use 600 grit paper. In true RDTL fashion, if I can’t find something I need, I figure out a way to make my own. A roll of 1000 grit emery cloth and my laser cutter did the trick. I now have 1000 grit bevel sander discs.
|

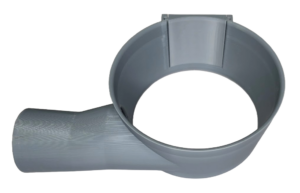

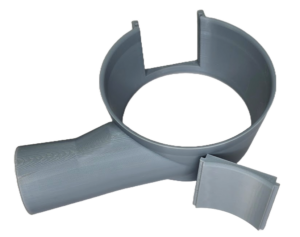

Rolling Down The Lane™ Drilling/Plug Cutting Vacuum Cup
|
- Dropped the two-piece vacuum attachment in favor of two dedicated models: one for 1-7/8″ wet/dry vac hoses and one for 2-1/2″ hoses.
- Opened up the inlet port so it stays full-size all the way through instead of narrowing.
- Added a removable sliding panel, making it easier to position the cup with a drill bit installed.
|
|
🔧 New: A place for home & small shop builders
|
|
Some of you drill your own balls at home. Some of you run a one-person shop and wear every hat, just like I do. Either way, you’ve probably jury-rigged a fixture, argued with a drill press, or built something out of pure necessity because nobody sells exactly what you needed.
|
|
I’m starting a Facebook group for exactly that — Home & Small Shop Bowling Setup. It’s a place to share builds, swap tools and techniques, and troubleshoot with people solving the same problems.
|
|
Part of what RDTL is about is creating solutions to real-world pro shop problems — like how I created my own fine-grit bevel sanding discs (more on that above) when I couldn’t find any to buy. So consider this group a sounding board too: if there’s something you keep running into and think “I really wish someone made a tool for this,” that’s exactly the kind of thing I want to hear. Full disclosure: I run this group, and RDTL will come up, but it’s not a sales feed — it’s the shop-talk side of what I do.
|
|
It’s a closed group, so you’ll answer a couple of quick questions to get in — just enough to keep the spam out.
|
|
|
Every year is getting shorter, never seem to find the time. (The Pink Floyd references just won’t stop.)
|
|
